Product Description:
Four independent unlocking methods: Fingerprint, Password, Card and Mechanical key.
Adopting America TI core chip ensures high precision and high safety performance.
OEM & ODM available.
Fake closing alar, Jimmying resistance and low voltage alarm.
With normal-open function.
Specifications:
Model: VN-G106
Material: Stainless steel
Unlock mode: Fingerprint +Password+ Card + Key
English voice operation system: Yes
Card User: 100
Fingerprint User: 100
Password User: 100

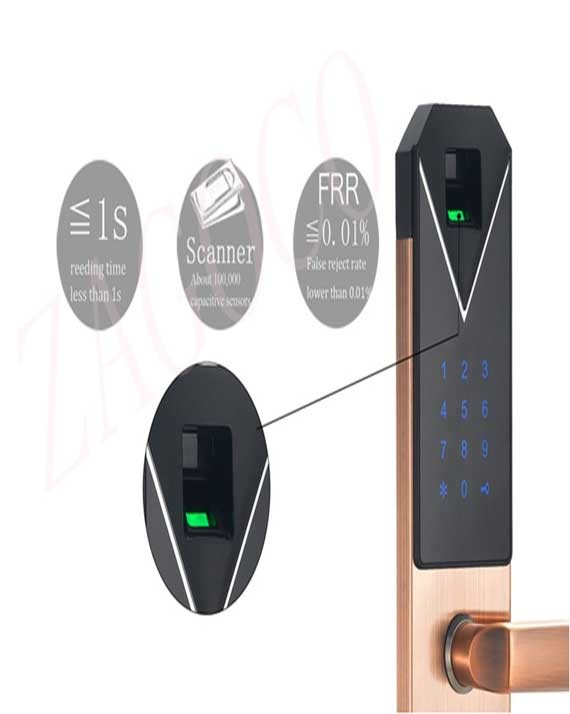

Fingerprint read: Biometrics sensor
Color: Red Bronze/Silver/Black
Chip Type: Mifare 1k 13.56mhz
Lock Cylinder: Class C
Type keypad: Touch screen keypad
Working power: 4 pcs AA batteries
Password function: support virtual password
Keep-open settings:3 +7+press unlock key,the door is in stay-open status
Electronic Security Bio metric Sensor Fingerprint Door Lock Digital Key less Combination Password Code Door Lock For Smart Home
Password Unlocking:
Max support 100pcs password registering.
Support 6 digits password.
You can input any number before or after correct password (Guard against peeping)
Note: Continuously input the wrong password 5 times,the keypad will be locked 5 minutes (More Security)

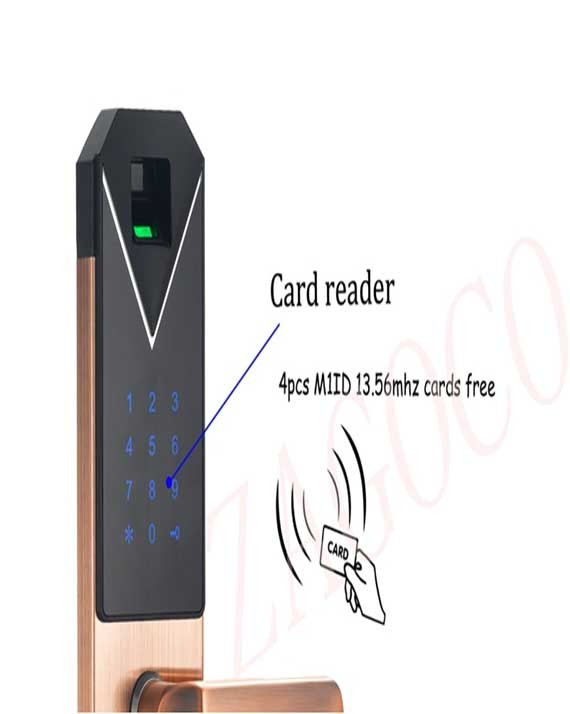

Mifare Card Unlocking:
The lock work with Mifare 1k 13.56mhz card,
Max support 100pcs cards registering.

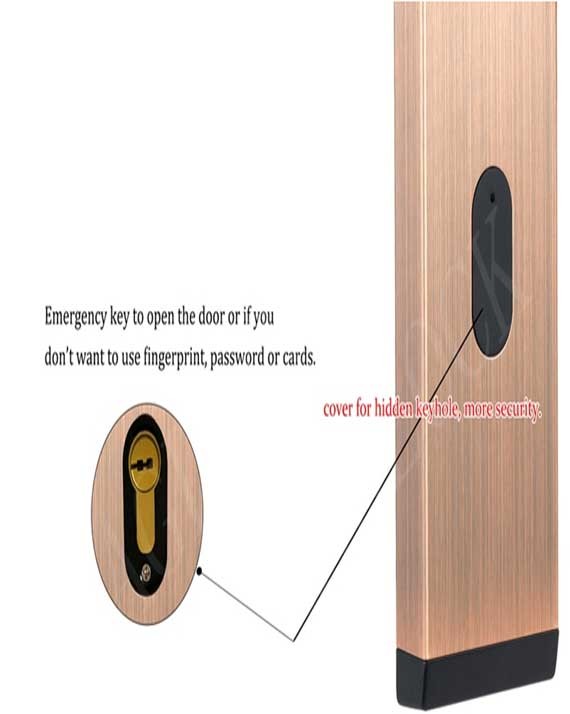

Mechanical Key Unlocking:
Emergency key to open the door or if you don't want to use fingerprint, password or cards.
Item include 2pcs free keys
English voice operation system:
English voice prompts how to add fingerprints, passwords and cards, how to delete fingerprints, passwords and cards, how to change the password. Operation more easier

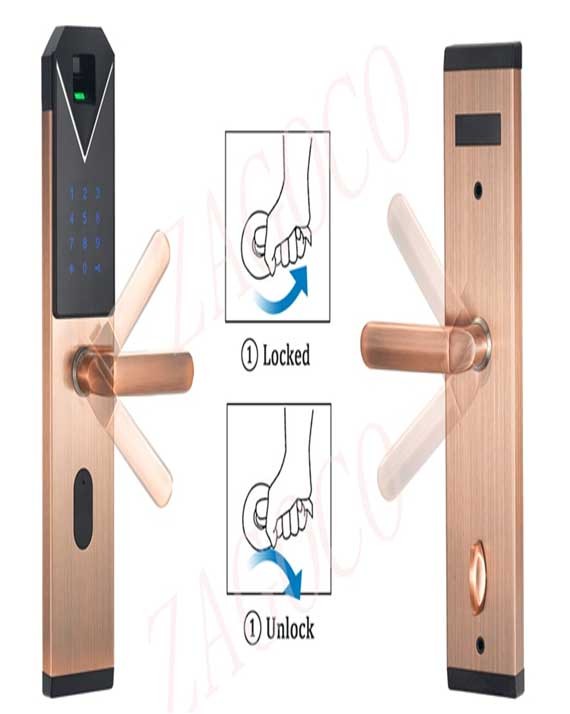

Free-style handle:
Free handle prevents violent opening.
Lift the handle -- Locked
Press the handle -- Unlocking
Battery Box:
The battery box in the front of the lock. If the battery no have any power,you can replace the battery from outdoor.
Note: How to open the battery box,please follow this picture.

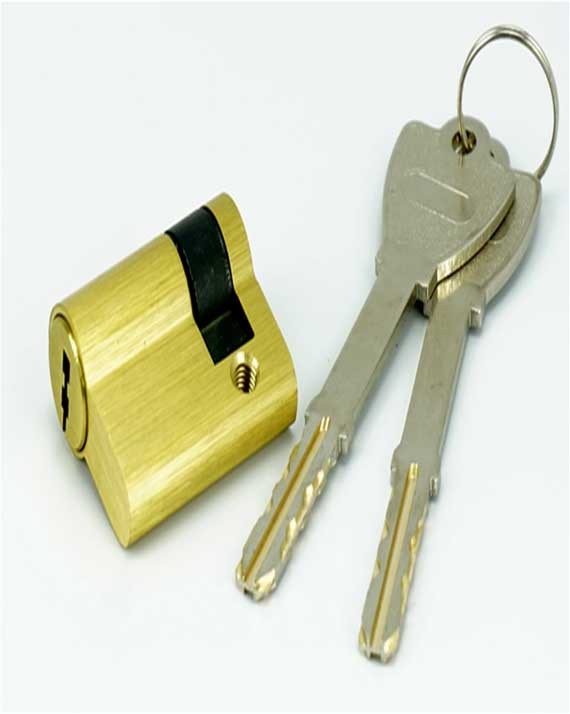

Lock Cylinder and keys:
With anti lock body,only real cylinder can real anti-thief
Class C lock cylinder is manufactured according to the safety standard of national .The key adopts double side double row with inner grooves + side marble design,and the inner of lock cylinder adopts multi track double marbles.The anti drilling experiments have exceeded the national C level lock core standards.Higher security factor,better user experience.The technical open time is two times of class B lock cylinder,and even can not open,fully beyond the B level lock more.

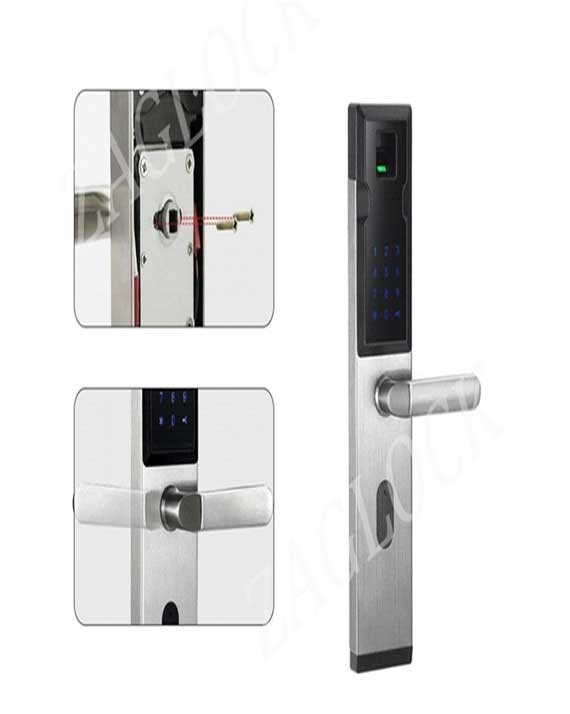

How to adjust the direction of the handle:
Take away two screws, rotate 180 degrees, Please follow this picture.
Package List:
Front panel *1
Back panel *1
Lock body *1
Lock catch *1
Mortise *1
Mechanical key*2
Cards *4
Accessories * 1 package
Instruction *1
Please pay attention when you order

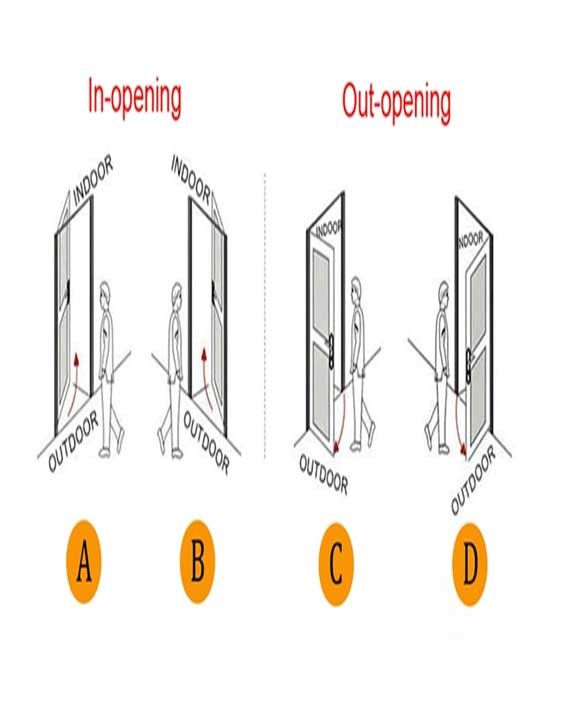

Please tell us the direction of the door and thickness of the door.
When you are standing outside the door, or when you are standing in the hallway
A. Left Push
B. Right Push
C. Left Pull
D. Right Pull
Note: Please also tell us your door is wooden or metal.
